Breakout - Step 1




Goal:

In this tutorial we will build on what we learned in the pong tutorial. Step 1, as usual, is to just get things set up. We will create our game class and most of our sprite classes, as well as set up a default ‘level’ and place blocks in it. When we are finished we will have a screen with some blocks and a paddle at the bottom that can move.

Planning

Breakout is kind of like pinball: we are trying to keep a ball in play by bouncing it while scoring points and moving to the next level by breaking blocks. So this time around we need a paddle, a ball, some blocks, and a ‘board’ to contain it all. I created some block images that are 50 pixels wide and I decided I wanted the ability to place 10 blocks side by side in each row of a level, requiring 500 pixels of space. I also have 10 pixel wide walls on the sides, making the total screen width 520. I created a simple background image of the correct size (520 x 600) and we will keep the ball and paddle inside the walls with simple code just like in the pong tutorial (hardcoded x and y values, not collision detection). Keep these things in mind as you look at the code.

The Setup

As always, we start with our import code. Just like in the pong tutorial we are going to grab pygame along with math, random, os, and sys. If we need something else down the line, its import will get added here.

try:
    import sys, os, math, random
    import pygame
    from pygame.locals import *

except ImportError, err:
    print "%s Failed to Load Module: %s" % (__file__, err)
    sys.exit(1)

Paddle

Next is our paddle class. This is copied over from the pong tutorial and modified slightly to fit breakout instead. Notable changes are the rotation of the paddle (we need horizontal in this game, not vertical) and the changes to move and keep it inside the walls horizontally.

class Paddle(pygame.sprite.Sprite):
    """A paddle sprite. Subclasses the pygame sprite class.
    Handles its own position so it will not go off the screen."""

    def __init__(self, xy):
        # initialize the pygame sprite part
        pygame.sprite.Sprite.__init__(self)
        # set image and rect
        self.image = pygame.image.load(os.path.join('images','paddle.gif'))
        self.image = pygame.transform.rotate(self.image, 90)
        self.rect = self.image.get_rect()

        # set position
        self.rect.centerx, self.rect.centery = xy

        # the movement speed of our paddle
        self.movementspeed = 5

        # the current velocity of the paddle -- can only move in X direction
        self.velocity = 0

    def left(self):
        """Increases the velocity"""
        self.velocity -= self.movementspeed

    def right(self):
        """Decreases the velocity"""
        self.velocity += self.movementspeed

    def move(self, dx):
        """Move the paddle in the x direction. Don't go past the sides"""
        if dx != 0:
            if self.rect.right + dx > 510:
                self.rect.right = 510
            elif self.rect.left + dx < 10:
                self.rect.left = 10
            else:
                self.rect.x += dx

    def update(self):
        """Called to update the sprite. Do this every frame. Handles
        moving the sprite by its velocity"""
        self.move(self.velocity)

    def reset(self):
        """Moves the paddle to the center of the booard"""
        self.center = 260, 550

The Block Class

This is our block class. I decided to make one block class for all the different blocks instead of using a separate class for each one. This will make it easy and clean to handle blocks losing levels – we can just track the level internally and change the block image as necessary. You should also notice the images dict – we are going to load the images one time in a different class and pass the dictionary containing their surfaces to each block class, effectively ‘caching’ it to save memory (even though that isn’t an issue with this small of a game).

class Block(pygame.sprite.Sprite):
    """A block sprite. Has a level and a position."""
    def __init__(self, xy, images, level=1):
        pygame.sprite.Sprite.__init__(self)

        # save images and level
        self.images = images
        self.level = level

        # set image and rect so we can be rendered
        self.image = self.images[self.level]
        self.rect = self.image.get_rect()

        # set initial position
        self.rect.center = xy

The Solid Block class

Similar to the Block class except it can only ever have one image and can never be destroyed, which we will handle in the next step of the tutorial.

class SolidBlock(pygame.sprite.Sprite):
    """A block that can't be destroyed"""
    def __init__(self, xy):
        pygame.sprite.Sprite.__init__(self)
        self.image = pygame.image.load(os.path.join('images', 'block_gray.png'))
        self.rect = self.image.get_rect()

        # set position
        self.rect.center = xy

The Block Factory Class

This one is pretty interesting. This is the class mentioned in the Block description where we pre-load all the images and pass them to the Blocks. We are going to create one of these in our game class and ask it for a block every time we need one. All it does is create a new block, pass it the dict of images, and return the block so we can use it.

class BlockFactory(object):
    """Using this class to return blocks with a copy of the images
        already loaded. No sense in re-loaded all the images for
        every block every time one is created."""

    def __init__(self):
        # load all our block images
        self.images = {
            1: pygame.image.load(os.path.join('images','block_blue.png')),
            2: pygame.image.load(os.path.join('images','block_green.png')),
            3: pygame.image.load(os.path.join('images','block_red.png')),
            4: pygame.image.load(os.path.join('images','block_orange.png')),
            5: pygame.image.load(os.path.join('images','block_purple.png'))
        }

    def getBlock(self, xy, level=1):
        return Block(xy, self.images, level)

    def getSolidBlock(self, xy):
        return SolidBlock(xy)

The Game Object

Next is the Game object. This is extremely similar to the one we created in the pong tutorial so I will skip most of it and you can go back and look at pong if you have questions. We set everything up the same way, we add another sprite group to hold and render our blocks (we are keeping them in their own group so we can take advantage of pygame’s collision checking functions later), we use the same buffered input to move the paddle. The only really interesting thing is the loadLevel function which is explaining in detail next.

class Game(object):
    """Our game object! This is a fairly simple object that handles the
    initialization of pygame and sets up our game to run."""

    def __init__(self):
        """Called when the the Game object is initialized. Initializes
        pygame and sets up our pygame window and other pygame tools
        that we will need for more complicated tutorials."""

        # load and set up pygame
        pygame.init()

        # create our window
        self.window = pygame.display.set_mode((520, 600))

        # clock for ticking
        self.clock = pygame.time.Clock()

        # set the window title
        pygame.display.set_caption("Pygame Tutorial 4 - Breakout")

        # tell pygame to only pay attention to certain events
        # we want to know if the user hits the X on the window, and we
        # want keys so we can close the window with the esc key
        pygame.event.set_allowed([QUIT, KEYDOWN, KEYUP])

        # make background
        self.background = pygame.image.load(os.path.join('images','background.jpg'))
        # blit the background onto the window
        self.window.blit(self.background, (0,0))
        # flip the display so the background is on there
        pygame.display.flip()

        # a sprite rendering group for our ball and paddle
        self.sprites = pygame.sprite.RenderUpdates()

        # create our paddle and add to sprite group
        self.paddle = Paddle((260,550))
        self.sprites.add(self.paddle)

        # create sprite group for blocks
        self.blocks = pygame.sprite.RenderUpdates()

        # create our blockfactory object
        self.blockfactory = BlockFactory()

        # load the first level
        self.loadLevel()

    def run(self):
        """Runs the game. Contains the game loop that computes and renders
        each frame."""

        print 'Starting Event Loop'

        running = True
        # run until something tells us to stop
        while running:

            # tick pygame clock
            # you can limit the fps by passing the desired frames per seccond to tick()
            self.clock.tick(60)

            # handle pygame events -- if user closes game, stop running
            running = self.handleEvents()

            # update the title bar with our frames per second
            pygame.display.set_caption('Pygame Tutorial 4 - Breakout   %d fps' % self.clock.get_fps())

            # update our sprites
            for sprite in self.sprites:
                sprite.update()

            # render our sprites
            self.sprites.clear(self.window, self.background)    # clears the window where the sprites currently are, using the background
            dirty = self.sprites.draw(self.window)              # calculates the 'dirty' rectangles that need to be redrawn

            # render blocks
            self.blocks.clear(self.window, self.background)
            dirty += self.blocks.draw(self.window)

            # blit the dirty areas of the screen
            pygame.display.update(dirty)                        # updates just the 'dirty' areas

        print 'Quitting. Thanks for playing'

    def handleEvents(self):
        """Poll for PyGame events and behave accordingly. Return false to stop
        the event loop and end the game."""

        # poll for pygame events
        for event in pygame.event.get():
            if event.type == QUIT:
                return False

            # handle user input
            elif event.type == KEYDOWN:
                # if the user presses escape, quit the event loop.
                if event.key == K_ESCAPE:
                    return False

                # paddle control
                if event.key == K_a or event.key == K_LEFT:
                    self.paddle.left()
                if event.key == K_d or event.key == K_RIGHT:
                    self.paddle.right()

                # serve with space if the ball isn't moving
                if event.key == K_SPACE:
                    pass

            elif event.type == KEYUP:
                # paddle control
                if event.key == K_a or event.key == K_LEFT:
                    self.paddle.right()
                if event.key == K_d or event.key == K_RIGHT:
                    self.paddle.left()
        return True

Game.loadLevel

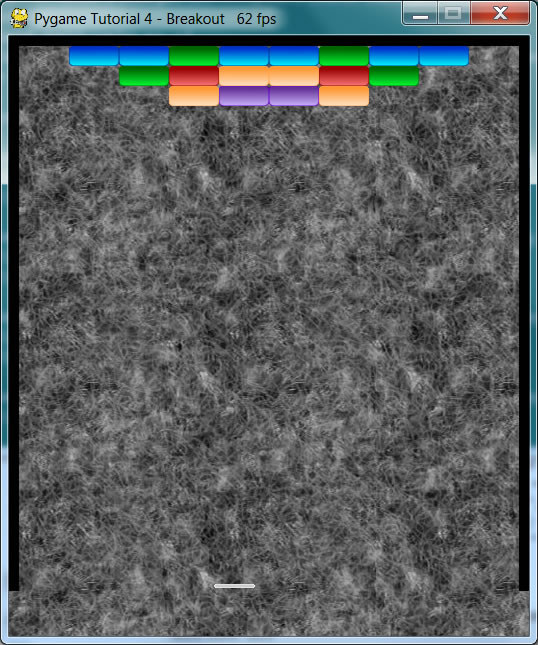

At this stage, this just creates and loads a default level of blocks. I decided each level can have up to 5 rows and 10 columns for a total of 50 blocks per level. We are going to represent levels with simple 2D array where the array values represent the level of the block at that position. This gives us a coordinate system to access our level data (level[rownumber][columnnumber]), making it very easy to process it programatically while still being able to understand it by looking at the code. Later we will create a level editor so we don’t need to edit it by hand, but for now it makes our lives a little easier.

def loadLevel(self):
    """Loads a level. Places blocks on the board and adds them to the
    blocks render group"""
    level = [
        [0, 1, 1, 2, 1, 1, 2, 1, 1, 0],
        [0, 0, 2, 3, 4, 4, 3, 2, 0, 0],
        [0, 0, 0, 4, 5, 5, 4, 0, 0, 0],
        [0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
        [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
    ]

    # levels are a 2d array with 5 rows and 10 columns
    # each space represents a block
    for i in range(5):              # for every row
        for j in range(10):         # for every column
            if level[i][j] != 0:    # if the space isnt empty
                blocklevel = level[i][j]    # get the level of the block
                x = 35 + (50*j) # x = 10 (for the wall) + 25 (to center of first block)
                                # + 50 (width of a block) * j (number of blocks over we are)
                y = 20 + (20*i) # y = 10 (for the wall ) + 10 (to center of first block)
                                # + 20 (height of a block) * i (number of blocks down)

                # if greater than 0 and less than 6, ie not a gray block
                if blocklevel > 0 and blocklevel < 6:
                    # create a block and add it
                    self.blocks.add(self.blockfactory.getBlock((x,y), blocklevel))

                # if block level == 6, solid block
                elif blocklevel == 6:
                    # create solid block and add it
                    self.blocks.add(self.blockfactory.getSolidBlock((x,y)))

Wrapping Up

The last thing we need is the code to create the Game object and run it when a user runs the script.

# create a game and run it
if __name__ == '__main__':
    game = Game()
    game.run()
